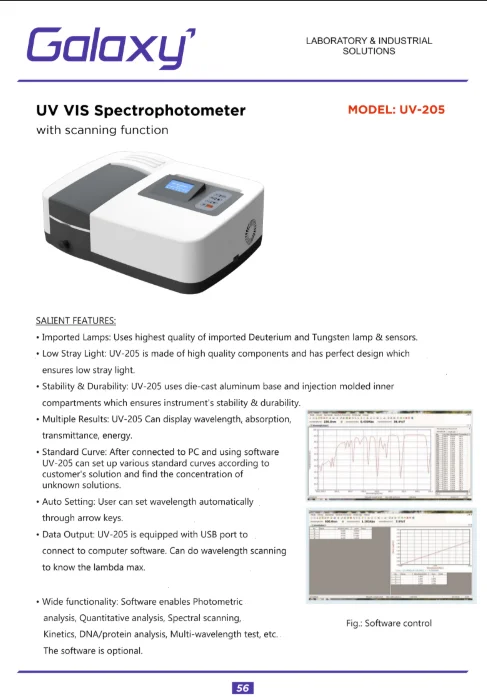

UV-Vis Spectrophotometer UV-205

VIS Spectrophotometer UV-205 is a reliable and efficient analytical instrument designed for accurate measurement of absorbance and transmittance in the visible wavelength range.

The UV-205 operates on the proven principle of visible spectrophotometry, enabling precise quantitative and qualitative analysis of samples by measuring light absorption at specific wavelengths. With its stable optical system and high-quality diffraction grating, the instrument ensures excellent wavelength accuracy and reproducibility. The visible wavelength range makes it ideal for colorimetric analysis, concentration determination, and routine testing where high reliability is essential.

The intuitive control panel allows users to select measurement modes easily, reducing training time and minimizing operational errors.

The instrument supports standard 10 mm cuvettes, ensuring compatibility with commonly used laboratory consumables.

Accuracy and consistency are key strengths of the VIS Spectrophotometer UV-205.

This makes it a cost-effective investment for institutions seeking dependable analytical equipment without frequent downtime or complex servicing.

• Socket type deuterium and tungsten lamp can make lamp switching without optic debugging and easy to be replaced.
• Automatic Temperature Compensation on (ATC) ensures high accuracy.

• Instruction manual
• Glass/ quartz cuvette
• Dust cover

<td>± 1 nm<td>± 0.002 A<td>Imported D2 & Tungsten Halogen Lamp

</tr><tr>Wavelength Range190 ~ 1000 nm<td>Photometric Range-0.3 ~ 3A, 0 ~ 200%T

cellpadding=”8″>ptical SystemSingle Beam (1200 lines/mm Grating)</tr><td>Measurement Mode

&amp;lt;table style=”border-collapse: collapse; width: 100%; font-family: Arial, sans-serif;” border=”1″ cellspacing=”0″>ModelUV-205MakeGalaxy</td>Bandwidth2 nmCell Holder10 mm manual 4-cell holderO

Wavelength AccuracyWavelength Repeatability± 0.5 nmWavelength SettingAutomaticPhotometric Accuracy± 0.5%TPhotometric Repeatability± 0.3%TStray Light± 0.3%TStability± 0.002 A/h @ 500 nmBaseline FlatnessT, A, C, EDisplay128 × 64 LCDDetectorImported Silicone PhotodiodeLight SourceOutputUSB Port & Parallel PortPower SupplyAC 220V / 50 HzDimensions650 × 520 × 340 mm & 15 kg
