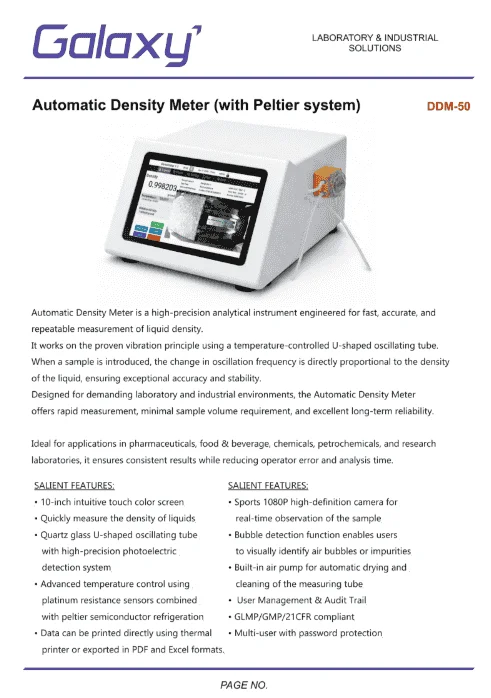

Automatic Density Meter (with Peltier system)

555,780.00

Inclusive of all taxes

Automatic Density Meter is a high-precision laboratory instrument designed for fast and accurate measurement of liquid density and specific gravity. Featuring digital display, temperature control, and automated operation, it ensures reliable results for quality control and research applications across pharmaceutical, chemical, and food industries.

SKU: DDM-50 Category:

Product Specification

Description

The Automatic Density Meter is a high-accuracy analytical instrument designed to measure the density, specific gravity, and concentration of liquids with speed and consistency. Built for modern laboratories and industrial quality control environments, this advanced device delivers reliable results while minimizing operator involvement, making it ideal for pharmaceuticals, chemicals, petrochemicals, food & beverage, and research applications.

Using oscillating U-tube technology, the Automatic Density Meter determines liquid density with exceptional precision. Integrated temperature control ensures stable conditions during testing, which is essential for repeatable and accurate readings.

Designed with user convenience in mind, the meter features an intuitive touchscreen or digital panel that allows operators to select measurement modes, calibrate with standard solutions, and store data effortlessly. Automatic calibration and cleaning options help reduce human error while improving workflow efficiency. With minimal sample volume requirements, the instrument is especially valuable when working with costly or limited samples.

The Automatic Density Meter supports multiple measurement parameters including density, specific gravity, concentration, and API values, depending on the model. Internal memory enables storage of test results, while USB or RS-232 connectivity allows easy data transfer to PCs or LIMS systems for documentation and reporting. This makes it a dependable tool for regulatory compliance and traceable quality control processes.

Features

  • 10-inch intuitive touch color screen
  • Quickly measure the density of liquids
  • Quartz glass U-shaped oscillating tube with high-precision photoelectric detection system
  • Advanced temperature control using platinum resistance sensors combined with peltier semiconductor refrigeration
  • Data can be printed directly using thermal printer or exported in PDF and Excel formats
  • Sports 1080P high-definition camera for real-time observation of the sample
  • Bubble detection function enables users to visually identify air bubbles or impurities
  • Built-in air pump for automatic drying and cleaning of the measuring tube
  • User Management & Audit Trail
  • GLMP/GMP/21CFR compliant
  • Multi-user with password protection

Accessories

  • Power Adapter
  • Instruction Manual
  • Waster Water Bole
  • Inlet & Outlet Tube

Specifications

Model DDM-50
Make Galaxy
Density Measuring Range 0.0000 to 3.000 g/cm³
Density Resolution 0.0001 g/cm³
Density Accuracy ±0.0003 g/cm³
Density Repeatability ±0.0001 g/cm³
Temperature Resolution 0.01°C
Control Temperature Range 5 to 50°C
Control Temperature Repeatability ±0.05°C
Control Temperature Accuracy ±0.1°C
Measurement Units Density, Specific gravity
Display 10 inch Touch Screen
Camera 1080p High Definition Camera
Calibration Multi-Point Calibration
Memory 32 GB
Interface USB, RS232, SD card, U disk
Electronic Signature Yes
Compliance GLP/GMP/21CFR
Audit Trail Yes
User Management Yes / 4-level authority management
File Export Type PDF & Excel
Power Supply AC 220V / 50 Hz
Dimensions & Weight 480 × 320 × 200 mm & 8 kgs
